Cement Baskets

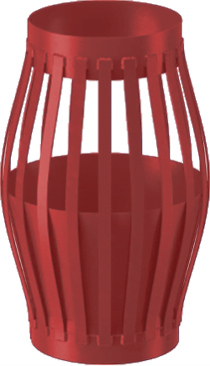

Slip On Welded Cement Baskets
Slip On Welded Cement Baskets are designed to run on casing or liners above porous or weak formations that require protection from the hydrostatic pressure generated by the cement column. They can also be used to help support a cement column near the well surface while the cement sets.
They have convex shaped Bows welded to both End Collars to provide added strength and more adaptability in terms of expansion and contraction. In addition, this type of Cement Basket can be rotated and reciprocated and is available in a choice of welded and non- welded convex shape bows.
Available in 4-1/2” to 20” sizes.
Any special sizes or combinations can be made available on request.
Canvas Cement Baskets
Canvas Cement Basket slips on and is made of high strength flexible steel staves and heavy-duty canvas liners. The cement basket aids premature cement hydration helping to reduce hydrostatic fluid column above a loss zone or weak formation. It can be used in most types of well designs and is particularly effective in accommodating larger than nominal hole sizes.
Heavy-duty canvas liners are riveted to staves fabricated onto the high strength steel
bows mounted on a steel slip-on end collar. This cement basket is installed between two stop collars. The baskets are not designed to be reciprocated, however, are occasionally allowed to travel the length of a joint to allow for pipe movement. Sizes are available for all standard casing/hole sizes.
Recommended for use with all standard casing grades.
Available in 4-1/2” to 20” sizes.
Any special sizes or combinations can be made available on request.
